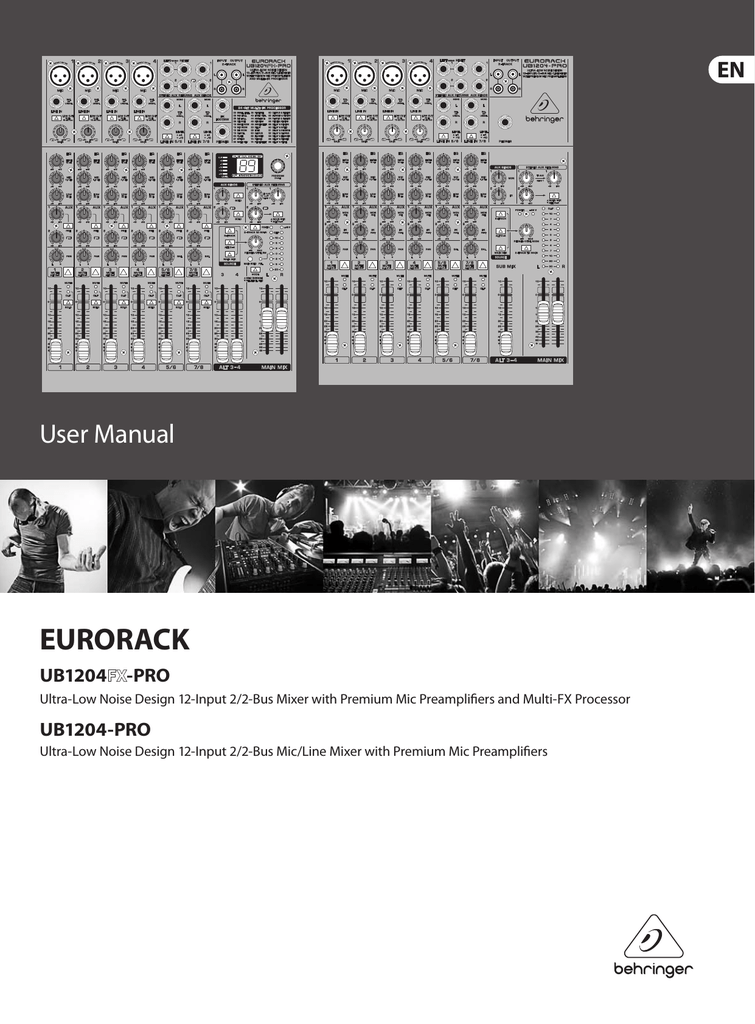

2. User Manual EURORACK. Ultra-Low Noise Design 12-Input 2/2-Bus Mixer with Premium Mic Preamplifiers and Multi-FX Processor. Ultra-Low Noise Design 12-Input 2/2-Bus Mic/Line Mixer with Premium Mic Preamplifiers.

5

List of 31 products in the Eurorack series from Behringer. Cookies help us improve performance, enhance user experience and deliver our services.

Behringer UB1204FX-PRO User Manual. Eurorack ub1204, Ub1204fx. Behringer Receivers and Amplifiers. Manuals Directory ManualsDir.com - online owner manuals library. Europack UB1204-Pro - read user manual online or download in PDF format. Pages in total: 15.

EURORACK UB1204

-PRO

/UB1204FX

-PRO

The interface of BEHRINGER mixing consoles is optimized for

these tasks enabling you to easily keep track of the signal path.

1.2 The user’s manual

The user’s manual is designed to give you both an overview of

the controls, as well as detailed information on how to use them.

In order to help you understand the links between the controls,

we have arranged them in groups according to their function. If

you need to know more about specific issues, please visit our

website at http://www.behringer.com, where you’ll find

explanations of e.g. effects and dynamics applications.

+

The block diagram supplied with the mixing console

gives you an overview of the connections between

the inputs and outputs, as well as the associated

Perec used or 'bi-squares' to distribute these elements across the 99 chapters of the book. The 'Fabrics' list contains ten different fabrics). In the pictured example, these two lists are the first three letters of the Greek and Latin alphabets; each cell contains a Greek and a Latin character, and, as in a sudoku, each row and column of the grid also contains each character exactly once. Perec used 21 larger (10x10) grids to distribute the elements of his 42 listsThe content of Perec's novel was partly generated by 42 lists, each containing 10 elements (e.g. A bi-square is similar to a puzzle, though more complicated, as two lists of elements must be distributed across the grid. Life a critical user's manual.

switches and controls.

For the moment, just try and trace the signal path from the

microphone input to the aux send 1 connector. Don’t be put off

by the huge range of possibilities; it’s easier than you think! If you

look at the overview of the controls at the same time, you’ll be

able to quickly familiarize yourself with your mixing console and

you’ll soon be making the most of all its many possibilities.

1.3 Before you get started

1.3.1 Shipment

Your mixing console was carefully packed in the factory to

guarantee safe transport. Nevertheless, we recommend that

you carefully examine the packaging and its contents for any

signs of physical damage, which may have occurred during

transit.

+

If the unit is damaged, please do NOT return it to us,

but notify your dealer and the shipping company

immediately, otherwise claims for damage or

replacement may not be granted.

1.3.2 Initial operation

Be sure that there is enough space around the unit for cooling

purposes and to avoid over-heating please do not place your

mixing console on high-temperature devices such as radiators

or power amps. The console is connected to the mains via the

supplied cable. The console meets the required safety standards.

Blown fuses must only be replaced by fuses of the same type

and rating.

+

Please note that all units must be properly

grounded. For your own safety, you should never

remove any ground connectors from electrical

devices or power cables, or render them in-

operative.

+

Please ensure that only qualified people install and

operate the mixing console. During installation and

operation, the user must have sufficient electrical

contact to earth, otherwise electrostatic discharges

might affect the operation of the unit.

1.3.3 Warranty

Please take time to fill out and return the warranty card within

14 days after the date of purchase, so as to be entitled to benefit

from our extended warranty. Alternatively, you can use our

online registration option available on the world wide web

(www.behringer.com). You will find the serial number on the

rear of your mixing console.

2. CONTROL ELEMENTS AND

CONNECTORS

This chapter describes the various control elements of your

mixing console. All controls, switches and connectors will be

discussed in detail.

2.1 Mono channels

2.1.1 Microphone and line inputs

Fig. 2.1: Connectors and controls of mic/line inputs

MIC

Each mono input channel offers a balanced microphone input

via the XLR connector and also features a switchable +48 V

phantom power supply for condenser microphones.

+

Please mute your playback system before you

activate the phantom power supply to prevent

switch-on thumps being directed to your loud-

speakers. Please also note the instructions in

chapter 2.4.2 “Voltage supply, phantom power and

fuse”.

LINE IN

Each mono input also features a balanced line input on a 1/4'

connector. Unbalanced devices (mono jacks) can also be

connected to these inputs.

+

Behringer Eurorack Pro Rx1602 Manual

Please remember that you can only use either the

microphone or the line input of a channel at any

one time. You can never use both simultaneously!

Behringer Eurorack Ub1204fx-pro User Manual Download

LO CUT

The mono channels of the mixing consoles have a high-slope

LO CUT filter for eliminating unwanted, low-frequency signal

components (75 Hz, 18 dB/octave).
GAIN

Use the GAIN control to adjust the input gain. This control

should always be turned fully counterclockwise whenever you

connect or disconnect a signal source to one of the inputs.

2.1.2 Equalizer

All mono input channels include a 3-band equalizer. All bands

provide boost or cut of up to 15 dB. In the central position, the

equalizer is inactive.
